Description

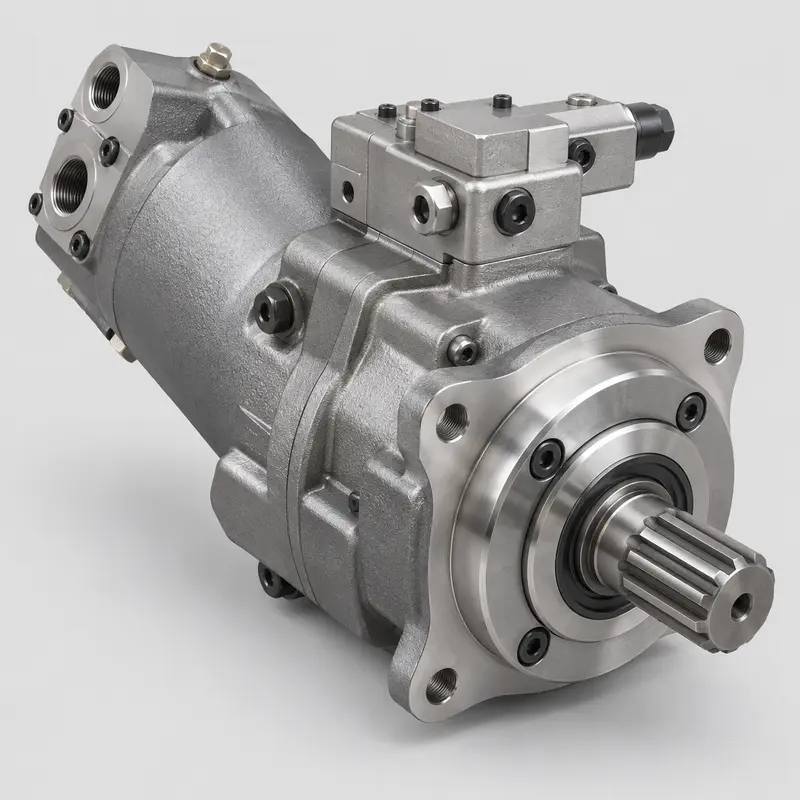

Linde CMV140 Variable Displacement Bent Axis Motor
The Linde CMV140 is a high-pressure variable displacement motor in bent-axis design for open- and closed-loop hydrostatic systems. The CMV platform combines a compact installation envelope with a large displacement ratio, smooth displacement adjustment and high operating speed for demanding mobile-machine drivelines.
Its synchronized servo-piston design is intended to support dependable control, fast response and high starting efficiency. Depending on the selected configuration, control options include electric proportional control with or without pressure override, two-position electric control and speed-dependent control. Optional features can include speed sensors, flushing valves and secondary protection.
Technical specifications
| Brand | Linde Hydraulics |
| Model | CMV140 |
| Series | CMV |
| Motor type | Variable displacement bent-axis motor |
| Hydraulic circuit | Open and closed loop |
| Maximum displacement | 141.0 cc/rev |
| Maximum/minimum displacement ratio | 5.8:1 |
| Maximum speed | 3600 rpm |
| Nominal pressure | 450 bar |
| Maximum transient pressure | 500 bar |
| Output torque | 1010 Nm |
| Maximum power | 364 kW |
| Approx. weight | 46 kg |
| Availability | On request |
Applications and configuration
The CMV is suitable for hydrostatic travel drives and other high-performance functions in construction and agricultural machinery. The large conversion range can support high tractive force at low speed and efficient operation at higher vehicle speeds. Final suitability depends on the duty cycle, pressure, speed, cooling, filtration and control strategy.
Before ordering, provide the complete model code and nameplate. Shaft, mounting flange, rotation, controller, ports, valves and sensor configuration must be confirmed for the individual machine.
Browse related hydraulic pumps and motors. Manufacturer reference: Linde CMV fact sheet for construction.
Manufacturer names and references are used only for product identification. Availability and final configuration are subject to confirmation.
For pricing, availability, inspection details and international delivery options, please contact us using the inquiry form below.
