Description

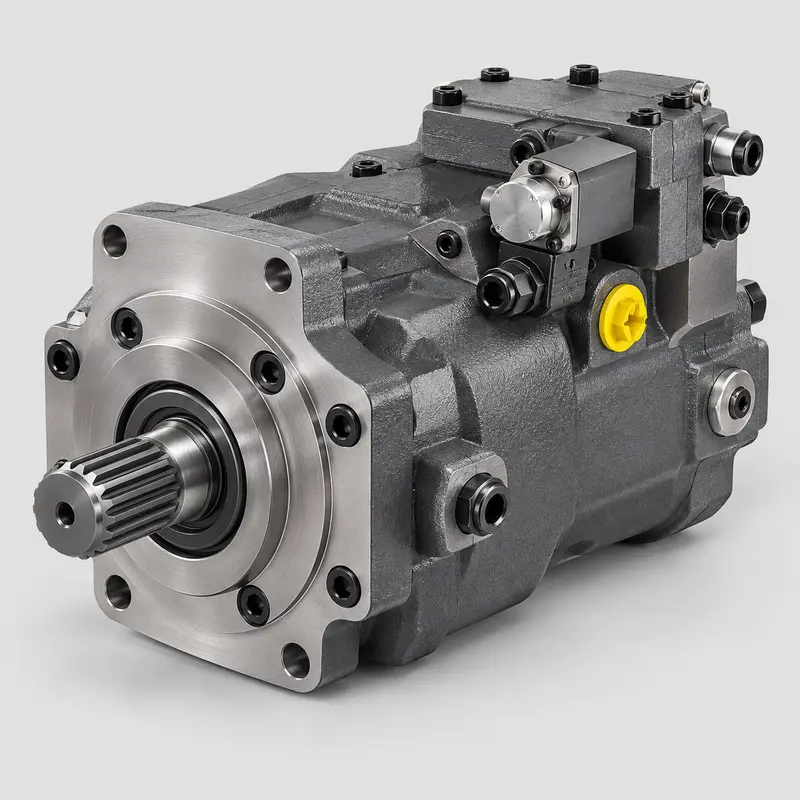

Linde HMV280-02 Variable Displacement Motor
Linde HMV280-02 Variable Displacement Motor is a Linde Hydraulics variable displacement axial piston motor from the Series 02 motor platform. It is intended for high-pressure hydraulic drive systems in construction equipment, road-building machinery, mining and quarry machines, tunnelling equipment, agricultural machinery and other mobile or industrial applications where compact dimensions and dependable torque transmission are important.
The HMV-02 series is designed for open- and closed-loop hydrostatic drives and combines smooth low-speed operation, high starting torque and a wide torque/speed conversion range. Depending on the selected control version, displacement can be controlled hydraulically or electrically, and the unit can be configured for demanding mobile drive functions.
Technical specifications
| Brand | Linde Hydraulics |
| Series | HMV-02 |
| Motor type | variable displacement axial piston motor |
| Hydraulic circuit | Open and closed loop |
| Displacement | 281.9 cc/rev |
| Max. operating speed | 2400 rpm |
| Maximum speed | 2700 rpm (transient) |
| Nominal pressure | 450 bar |
| Maximum pressure | 500 bar (transient) |
| Output torque | 1929 Nm at Δp 430 bar |
| Corner power (theoretical) | 586 kW |
| Approx. weight | 146 kg |
| Availability | On request |
Typical applications
Typical uses include hydrostatic travel drives, wheel and track drive systems, auxiliary drive functions, winches, mobile machinery powertrains and other heavy-duty hydraulic systems. The exact suitability depends on the machine duty cycle, operating pressure, required speed and torque, cooling, filtration and the specific hydraulic circuit.
For replacement or project supply, the complete Linde model code and the existing unit’s nameplate should be checked before ordering. Shaft profile, mounting flange, rotation, controller or control option, valves, port arrangement, PTO or through-drive features and other configuration details can differ within the same rated size and must therefore be confirmed for the individual application. A matching displacement value alone does not guarantee interchangeability.
Browse related hydraulic pumps and motors available from INTEREQ. For manufacturer technical reference, see the corresponding Linde Hydraulics Series 02 motor information.
Manufacturer names and references are provided solely for product identification and technical reference. Availability and final configuration are subject to confirmation.
For pricing, availability, inspection details and international delivery options, please contact us using the inquiry form below.
